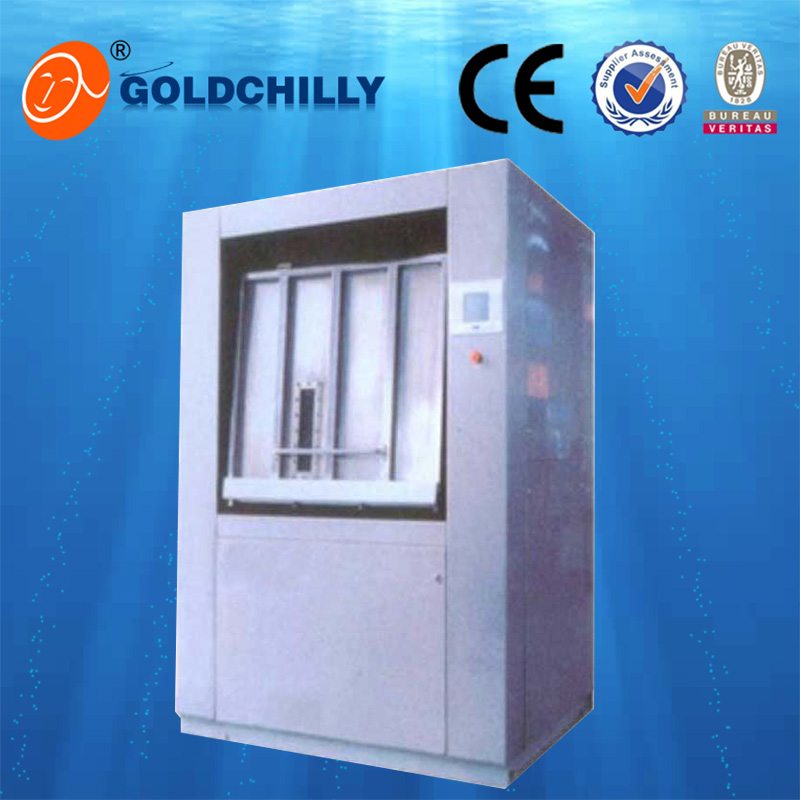

Isolated washing-dehydration machine
- Product Detail
This new designed isolating type of washing and de-watering machine meets the requirement of sterile, dust-free, anti-static washing needs.With the isolating type of washing equipment and isolating wall, the laundry zone is divided into two separate independent operating areas:“Clean”area and “Non-clean”area.The washing will be loaded into the drum from “Non-clean”area.After that,it will be unloaded from “Clean”area. Thus,it prevents the clean washing from being contaminated and get infected again.
This isolating type of washing machine is with advanced technology, reasonable structure, economic running, convenient maintenance and good performance.It is widely used by microelectronics manufacturing, hospital, food and pharmaceuticals production, nuclear power plants etc where is extremely with a strict environmental requirement of dust-free and sterile for laundry room.It is the ideal laundry equipment for such situation.
Main parameters:
Model |
CX235 |
CX250 |
CX270 |
CX2100 |
CX2140 |
|||
Rated washing capacity |
35 |
50 |
70 |
100 |
140 |
|||
Drum diameter |
Washing,even spread,medium de-water,fast de-water rotation limit set by VFD |
|||||||
Drum diameter |
750 |
750 |
950 |
950 |
1200 |
|||
Depth |
800 |
1140 |
990 |
1420 |
1240 |
|||
Motor power |
4 |
5.5 |
7.5 |
11 |
18.5 |
|||
VFD capacity |
5.5 |
7.5 |
11 |
15 |
22 |
|||
Cold water in-let |
G1" |
G1" |
G1" |
G1 1/2" |
G1 1/2" |
|||
Hot water in-let |
G1" |
G1" |
G1" |
G1" |
G1 1/2" |
|||
Stream joint |
G1/2" |
G3/4" |
G1" |
G1" |
G1" |
|||
Drain |
G3" |
G3" |
G4" |
G4" |
G5" |
|||
External dimension |
H |
1850 |
1850 |
2100 |
2100 |
2400 |
||
D |
1200 |
1200 |
1450 |
1450 |
1750 |
|||
W |
1580 |
1920 |
1840 |
2270 |
2170 |
|||
Machine weight |
1570 |
1750 |
2250 |
2500 |
3100 |
